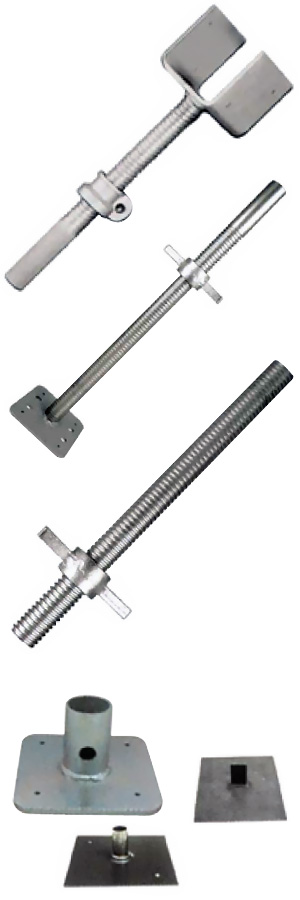

MI-039
Adjustable U - Head (Pipe OD 38mm)
Item Code Size (mm) Wt. (kg.)
0311 100 4.70
0312 150 5.75
0313 200 6.80
MI-040
Adjustable Base Jack (Pipe OD 38mm)
Item Code TL/AL (mm) Wt. (kg.)
0321 0.450/0.350 2.60
0322 0.550/0.450 2.65
0323 0.650/0.550 3.30
0324 0.750/0.650 3.70
MI-041
Adjustable Base Jack (Pipe OD 34mm)
Item Code TL/AL (mm) Wt. (kg.)
0331 0.450/0.350 2.45
0332 0.550/0.450 2.75
0333 0.650/0.550 3.10
0334 0.750/0.650 3.40
MI-042
Adjustable Base Jack (Solid Ø 32mm)
Item Code TL/AL (mm) Wt. (kg.)
0341 0.500/0.350 4.60
0342 0.600/0.500 5.35
0343 0.800/0.700 6.70
0344 1.000/0.800 8.12


Base size 150 x 150 x 6(mm)
TL - Total Length, AL - Adjustable Length
MI-043
Universal Jack (Pipe OD 38mm)
Item Code Trl.Ht/Adj.Ht.(Mtr.) Wt. (kg.)
0351 0.450/0.350 1.60
0352 0.550/0.450 1.95
0353 0.650/0.550 2.30
0354 0.750/0.650 2.70
MI-044
Universal Jack (Pipe OD 34mm)
Item Code Trl.Ht/Adj.Ht.(Mtr.) Wt. (kg.)
0361 0.450/0.350 1.45
0362 0.550/0.450 1.75
0363 0.650/0.550 2.10
0364 0.750/0.650 2.40
MI-045
Base Plates
Item Code Size
0371 0.450/0.350 Pipe: Ø48.3mm, H-100mm
0372 0.550/0.450 Strip: W-25mm, H-50mm,T-4mm
0373 0.650/0.550 Strip: Ø22.7mm, H-50mm

ACCESSORIES
Jack Plate Jack Plate Jack Nut
