Spanners & Wrenches




MF - 121

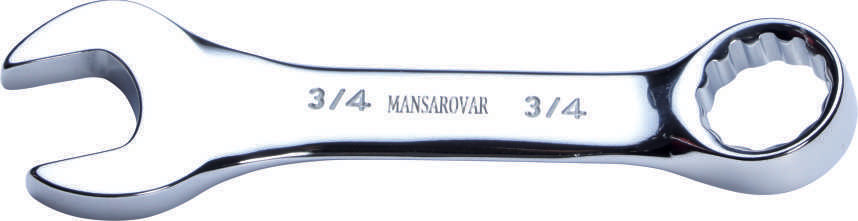

STUBBY WRENCH


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Hardened & Tempered
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror Finish/Satin Finish
  • • HSN 82041110
  • • Available individually or in sets.
SIZE LENGTH WEIGHT (KG)
MM
10 95 0.035
11 101 0.038
12 105 0.045
13 110 0.050
14 116 0.061
15 125 0.080
16 125 0.081
17 130 0.095
18 130 0.110
19 140 0.115
20 140 0.125
21 140 0.150
22 150 0.160
23 152 0.190
25 152 0.190

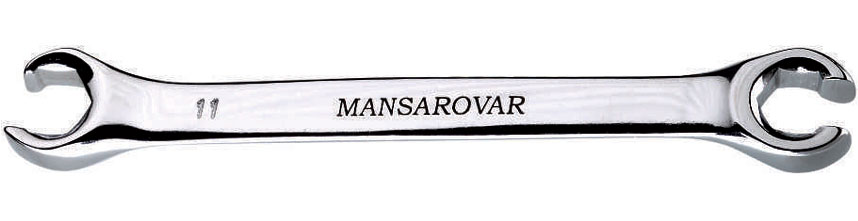

MF - 122

FLARE NUT SPANNER/WRENCH


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirms to DIN 3118 Standard.
  • • Lifetime limited manufacturing warranty.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Available in your brand.
  • • Mirror/Satin/Black/Matt Finish.
  • • Fully hardened & tempered
  • • Available individually or in sets.
SIZE LENGTH (MM) WEIGHT (KG)
MM
6x7 126 0.035
6x8 126 0.035
8x9 145 0.047
8x10 145 0.047
9x10 145 0.047
9x11 145 0.047
10x11 152 0.060
10x12 152 0.060
11x13 165 0.078
12x13 165 0.078
12x14 178 0.120
13x14 178 0.120
14x17 196 0.145
15x17 196 0.145
16x17 196 0.145
16x18 196 0.145
17x19 210 0.180
18x19 210 0.180
19x22 233 0.240
20x22 233 0.240
SETS
M/6 Set of 6 Pcs
(8x9, 10x11, 12x13, 14x17, 17x19, 20x22 MM)		 0.750 M/6 Set of 6 Pcs
(8x10, 10x11, 10x12, 11x13, 12x14, 17x19 MM)		 0.545
M/6 Set of 6 Pcs
(8x10, 10x12, 11x13, 12x14, 17x19, 19x22 MM)		 0.725 M/6 Set of 6 Pcs
(8x9, 10x11, 12x13, 14x17, 17x19, 22x24 MM)		 0.810


MF - 123

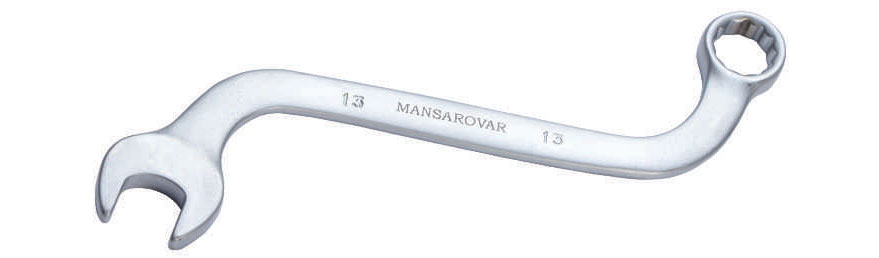

COMBINATION SPANNER 'S' SHAPED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM
10 0.020
11 0.025
12 0.035
13 0.050
14 0.065
15 0.095
16 0.150
17 0.150
19 0.175
MF - 124

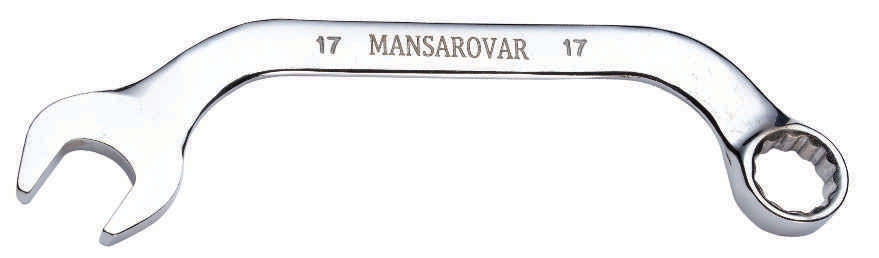

COMBINATION SPANNER HALF MOON PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM
10 0.020
11 0.025
12 0.035
13 0.050
14 0.065
15 0.095
16 0.150
17 0.150
19 0.175
22 0.175


MF - 125

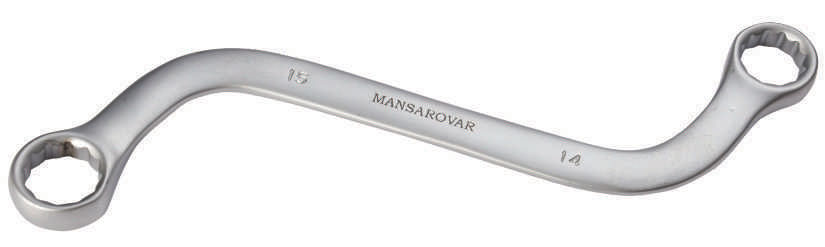

RING SPANNER ELLIPTICAL 'S' SHAPED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE WEIGHT (KG)
MM
10x11 0.045
12x13 0.070
14x15 0.110
16x17 0.150
18x19 0.190

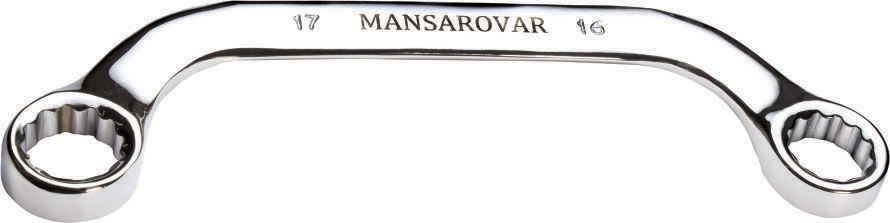

MF - 126

RING SPANNER ELLIPTICAL HALF MOON PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM WEIGHT (KG)
10x11 0.045
10x12 0.045
12x13 0.075
14x15 0.100
13x17 0.150
14x17 0.150
16x17 0.150
17x19 0.200
19x22 0.200


MF - 127

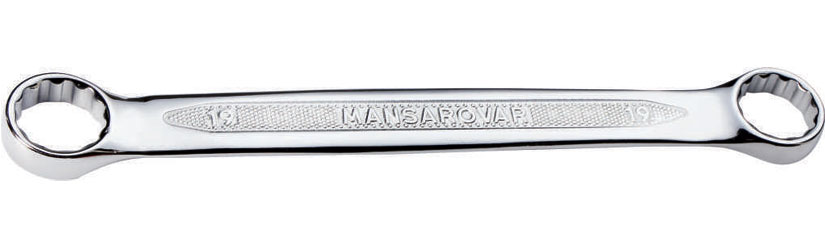

STRAIGHT DOUBLE RING SPANNER


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM LENGTH WEIGHT (KG)
6x7 99 0.014
8x9 114 0.024
10x11 131 0.034
12x13 149 0.049
14x15 161 0.064
16x17 169 0.084
18x19 209 0.136
20x22 209 0.134
21x23 233 0.171
24x27 260 0.249
25x28 289 0.273
30x32 320 0.399
SETS
M/8 Set of 8 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22 MM)		 0.539
M/12 Set of 12 Pcs
(6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x27, 25x28, 30x32 MM)		 1.631
MF - 128

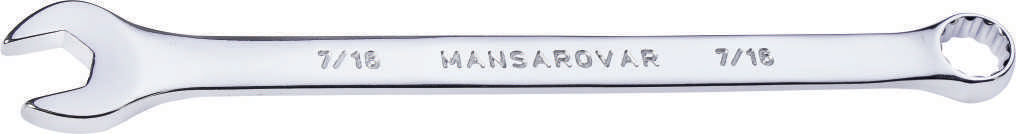

EXTRA LONG PATTERN RECESSED PANEL


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Confirm to DIN 3113 A standard.
  • • Hardened & Tempered.
  • • Available in your brand.
  • • Lifetime limited manufacturing warranty.
  • • Matt/Mirror/Satin & Black Chrome Finish
  • • Available individually or in sets.
  • • Made from chrome vanadium steel (31 Crv3).
  • • HSN 82041110
SIZE LENGTH WEIGHT (KG)
MM SAE
6 1/4 129 0.023
7   138 0.025
8 5/16 147 0.030
9   157 0.045
10 3/8 165 0.055
11 7/16 185 0.065
12   186 0.080
13 1/2 206 0.090
14 9/16 221 0.110
15   231 0.120
16 5/8 241 0.150
17 11/16 259 0.180
18   269 0.210
19 3/4 278 0.245
20   289 0.255
21 13/16 300 0.300
22 7/8 317 0.360
23   323 0.415
24 15/16 336 0.420
25 1 356 0.500
26   363 0.505
27 1.1/16 374 0.615
28 1.1/8 406 0.780
30   431 0.935
32 1.1/4 440 0.955
    MM SETS
M/6 Set of 6 Pcs
(8,10,12,13,
14,17MM)		 0.611 M/14 Set of 14 Pcs
(8,9,10,11,12,13,14,15,
16,17,19,21,22,24MM)		 2.119
M/8 Set of 8 Pcs
(8,9,10,11,13,
14,17,19MM)		 0.870 M/25 Set of 25 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,30&32MM)		 8.437
M/12 Set of 12 Pcs
(6,7,8,9,10,11,12,
13,14,17,19,22MM)		 1.334 M/26 Set of 26 Pcs
(6,7,8,9,10,11,12,13,14,
15,16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30&32MM)		 7.024

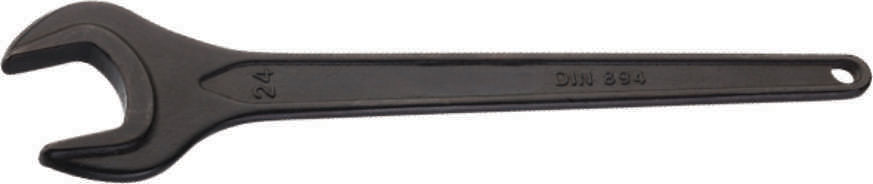

MF - 129

SINGLE OPEN END SPANNER


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • HSN 82041110
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM LENGTH (MM) WEIGHT (KG)
6 73 0.010
7 78 0.010
8 94 0.015
9 100 0.017
10 106 0.022
11 112 0.029
12 312 0.035
13 413 0.039
14 214 0.044
15 14 0.046
16 515 0.056
17 515 0.060
18 916 0.067
19 517 0.081
22 19 0.113
24 331 0.154
27 723 0.199
30 926 0.249
32 327 0.374
34 529 0.365
36 30 0.392
38 531 0.406
41 534 0.568
46 438 0.704
50 41 0.956
55 345 1.125
60 949 1.439
65 452 1.686
70 857 2.111
75 261 2.782
80 064 2.905
85 569 3.895
90 069 3.720
95 084 6.335
100 7847 6.125
MF - 130

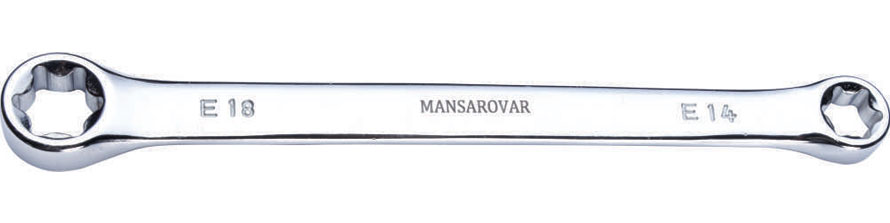

TORX WRENCH


  • • For heavy continuous use and safety in everyday work.
  • • Top grade industrial product.
  • • Available individually or in sets.
  • • Made from Chrome Vanadium Steel (31Crv3)
  • • Lifetime limited manufacturing warranty.
  • • HSN 82041110
  • • Available in your brand.
  • • Mirror/Satin/Finish (Bright Chrome Plated)
  • • Fully hardened & tempered
SIZE MM LENGTH WEIGHT (KG)
E6xE7 112 0.014
E6xE8 112 0.014
E7xE11 140 0.039
E8xE10 140 0.039
E10xE12 140 0.039
E11xE12 140 0.039
E14xE16 180 0.039
E14xE18 180 0.039
E16xE22 224 0.088
E18xE22 224 0.088
E20xE24 224 0.168
E22xE24 224 0.168


MF - 133

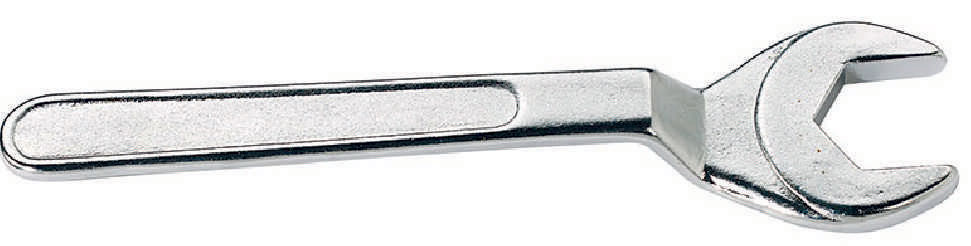

GAS SPANNER


  • • Drop Forged.
  • • Made from carbon steel.
  • • Available individually or in sets.
  • • Material

  • • Finish
  • • Hardened & Tempered.
  • • Chrome Plated/Zinc Plated.
  • • Available with or without rod.
SIZE
INCH MM
1 25

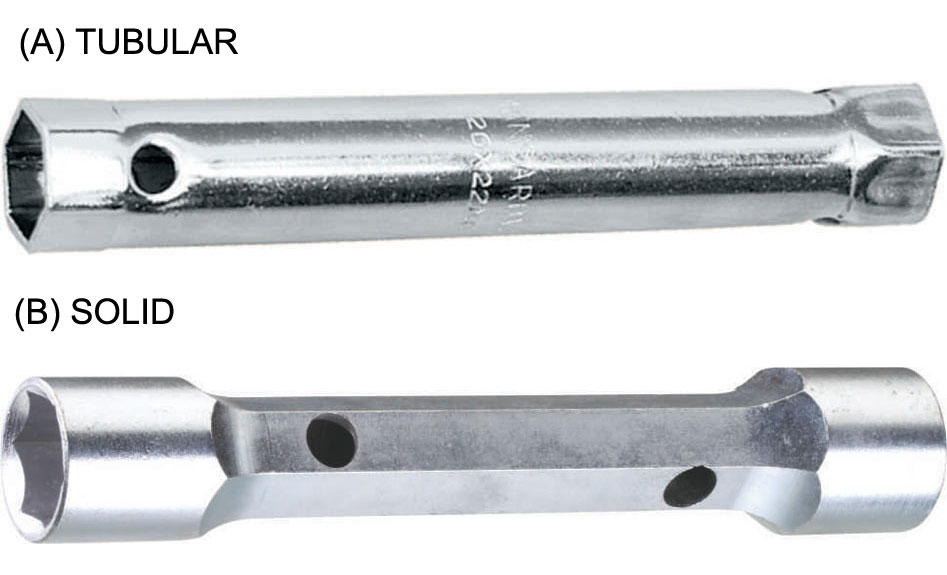

MF - 134

HEXAGONAL BOX SPANNER SOLID & TUBULAR


  • • Drop Forged.
  • • Made from carbon steel.
  • • Available individually or in sets.
  • • Material

  • • Finish
  • • Hardened & Tempered.
  • • Chrome Plated/Zinc Plated.
  • • Available with or without rod.
SIZE MM WEIGHT (KG)
6x7 0.035
8x9 0.048
10x11 0.055
12x13 0.080
14x15 0.090
16x17 0.125
18x19 0.165
20x22 0.190
21x23 0.190
24x27 0.270
25x28 0.320
30x32 0.360
MM SETS
M/6 Set of 6 Pcs
(8x9,10x11,12x13,14x15,16x17,18x19MM)		 0.560
M/8 Set of 8 Pcs
(6x7,8x9,10x11,12x13,14x15,16x17,18x19,20x22MM)		 0.835
