MI - 5103
| Combination Spanner Elliptical Panel (DIN 3113) |
Full Polished
Chrome Vanadium

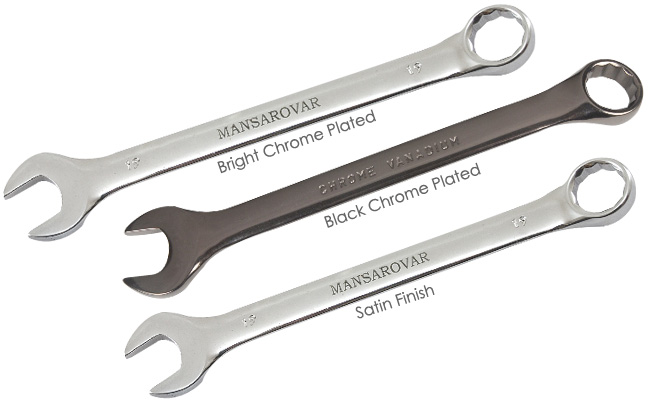

Bright Chrome Plated/Satin Finish/Black Chrome Plated
Dully Hardener & Tempered
Ring at 15° offset |
| Size |
L
(mm) |
 gms
(Approx.) |
| MM |
SAE |
| 6 |
1/4 |
100 |
18 |
| 7 |
|
110 |
22 |
| 8 |
5/16 |
120 |
26 |
| 9 |
|
130 |
30 |
| 10 |
3/8 |
140 |
42 |
| 11 |
7/16 |
150 |
52 |
| 12 |
|
160 |
60 |
| 13 |
1/2 |
170 |
72 |
| 14 |
9/16 |
180 |
86 |
| 15 |
|
190 |
92 |
| 16 |
5/8 |
200 |
109 |
| 17 |
11/16 |
210 |
132 |
| 18 |
|
220 |
152 |
| 19 |
3/4 |
230 |
160 |
| 20 |
|
240 |
182 |
| 21 |
13/16 |
250 |
192 |
| 22 |
7/8 |
260 |
210 |
| 23 |
|
270 |
250 |
| 24 |
15/16 |
280 |
260 |
| 25 |
1 |
290 |
300 |
| 26 |
|
300 |
320 |
| 27 |
1.1/16 |
310 |
390 |
| 28 |
1.1/8 |
320 |
435 |
| 29 |
|
330 |
435 |
| 30 |
|
340 |
460 |
| 32 |
1.1/4 |
360 |
560 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 60 |
8,10,12,13,14,17 |
418 |
| M 80 |
8,9,10,11,13,14,17,19 |
600 |
| M 110 |
6,7,8,9,10,11,12,13,14,
17,19 |
700 |
| M 120 |
6,7,8,9,10,11,12,13,14,
17,19,22 |
910 |
| M 121 |
8,10,12,13,14,17,19,
22,
24,27,30,
32 |
2458 |
| M 140 |
6,7,8,9,10,11,12,13,14,15,
17,18,
19,22 |
1154 |
| M 250 |
6,7,8,9,10,11,12,13,14,15,
16,17,
18,19,20,21,22,23,
24,25,26,
27, 28,
30,32 |
4612 |
|
 |
MI - 5104

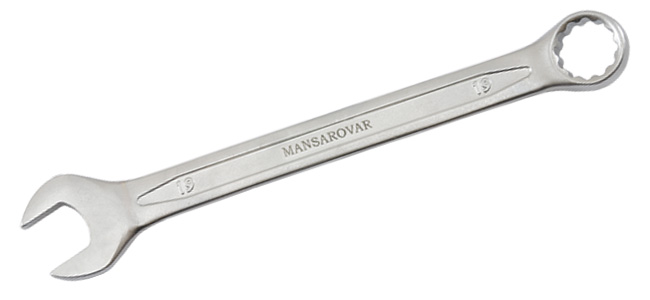

Combination Spanner Cold Pressed Panel
(DIN 3113A) |
Chrome Vanadium
Matt Finish / Head Polish (Chrome Plated)
Duly Hardened & Temered
Ring at 15° offset |
Size
(mm) |
L
(mm) |
gms
(Approx.) |
| 6 |
100 |
18 |
| 7 |
110 |
22 |
| 8 |
120 |
26 |
| 9 |
130 |
30 |
| 10 |
140 |
42 |
| 11 |
150 |
52 |
| 12 |
160 |
60 |
| 13 |
170 |
72 |
| 14 |
180 |
86 |
| 15 |
190 |
92 |
| 16 |
200 |
109 |
| 17 |
210 |
132 |
| 18 |
220 |
152 |
| 19 |
230 |
160 |
| 20 |
240 |
182 |
| 21 |
250 |
192 |
| 22 |
260 |
210 |
| 23 |
270 |
250 |
| 24 |
280 |
260 |
| 25 |
290 |
300 |
| 26 |
300 |
320 |
| 27 |
310 |
390 |
| 28 |
320 |
435 |
| 29 |
330 |
435 |
| 30 |
340 |
460 |
| 32 |
360 |
560 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 50 |
8,10,12,13,14,17 |
346 |
| M 60 |
8,10,12,13,14,17 |
418 |
M 80
|
6,7,8,9,10,14,17,19 |
516 |
| M 81 |
8,9,10,11,13,14,17,19 |
600 |
| M 120 |
6,7,8,9,10,11,12,13,14,
17,19,
22, |
910 |
| M 250 |
6,7,8,9,10,11,12,13,14,15,
16,17,18,19,20,21,22,23,
24,25,26,27,28,30,32 |
4612 |
| M 260 |
6,7,8,9,10,11,12,13,14,15,
16,17,18,19,20,21,22,23,
24,25,26,27,28,29,30,32 |
5047 |
|
|
|
