MI - 5107

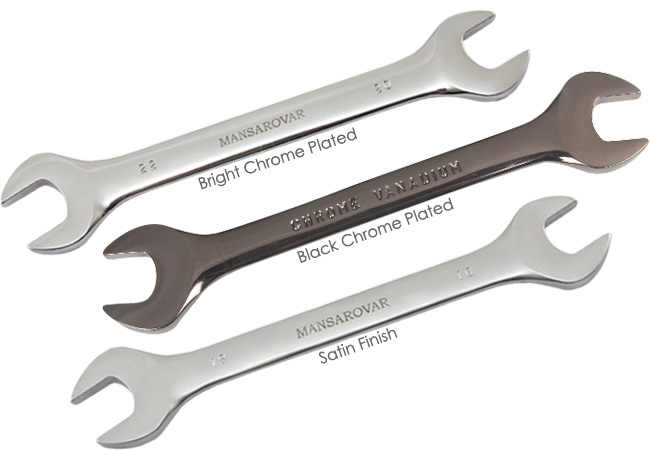

Double Open End Spanner Elliptical Panel
(DIN 3110) |
Full Polished
Chrome Vanadium,
Bright Chome Plated/Satin Finish/Black Chrome Plated
Duly Hardened & Tempered
Head set at 15° offset |
Size
(mm) |
L
(mm) |
 gms
(Approx.) |
| 6x7 |
122 |
24 |
| 8x9 |
140 |
32 |
| 10x11 |
155 |
55 |
| 12x13 |
171 |
76 |
| 14x15 |
190 |
112 |
| 16x17 |
204 |
130 |
| 18x19 |
220 |
165 |
| 20x22 |
235 |
210 |
| 21x23 |
248 |
240 |
| 24x26 |
267 |
315 |
| 24x27 |
267 |
315 |
| 25x28 |
280 |
360 |
| 30x32 |
301 |
485 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 60 |
6x7, 8x9, 10x11,12x13,
14x15,16x17 |
429 |
| M 80 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22 |
707 |
| M 120 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22,
21x23, 24x27, 25x28, 30x32 |
2007 |
|
 |
MI - 5108

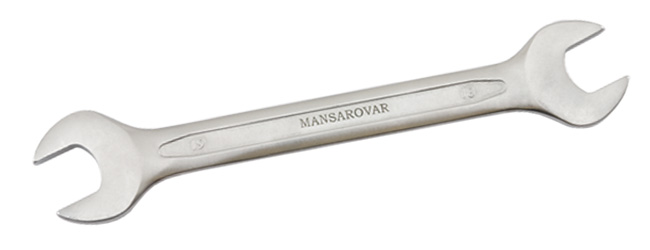

Double Open End Spanner Cold Pressed Panel
(DIN 3110) |
Chrome Vanadium,
Matt Finish / Head Polish (Chrome Plated)
Duly Hardened & Tempered
Head set at 15° offset |
Size
(mm) |
L
(mm) |
gms
(Approx.) |
| 6x7 |
122 |
23 |
| 8x9 |
140 |
32 |
| 10x11 |
155 |
50 |
| 12x13 |
171 |
62 |
| 14x15 |
190 |
80 |
| 16x17 |
204 |
110 |
| 18x19 |
220 |
150 |
| 20x22 |
235 |
200 |
| 21x23 |
248 |
230 |
| 24x27 |
267 |
275 |
| 25x28 |
280 |
345 |
| 30x32 |
301 |
450 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 60 |
6x7, 8x9, 10x11, 12x13,
14x15,16x17 |
357 |
| M 80 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22 |
707 |
| M 120 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22,
21x23, 24x27, 25x28, 30x32 |
2007 |
|
|
|
