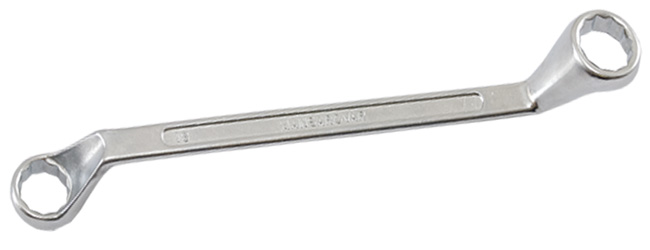

MI - 5109
Bi-Hexagonal Ring Spanner Deep Offset
(DIN 838) |
Recessed Panel
Carbon Steel / Chrome Vanadium
Matt Finish / Head & Side Polished (Chrome Plated)
Duly Hardened & Tempered |
Size
(mm) |
L
(mm) |
 gms
(Approx.) |
| 6x7 |
170 |
45 |
| 8x9 |
182 |
68 |
| 8x10 |
185 |
73 |
| 10x11 |
195 |
82 |
| 10x13 |
200 |
93 |
| 12x13 |
212 |
110 |
| 13x17 |
220 |
125 |
| 14x15 |
226 |
135 |
| 16x17 |
242 |
155 |
| 17x19 |
250 |
175 |
| 18x19 |
261 |
200 |
| 19x22 |
275 |
255 |
| 20x22 |
296 |
290 |
| 21x23 |
315 |
300 |
| 24x26 |
325 |
340 |
| 24x27 |
325 |
340 |
| 25x28 |
335 |
370 |
| 27x32 |
365 |
510 |
| 30x32 |
365 |
500 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 60 |
6x7, 8x9, 10x11,12x13,
14x15,16x17 |
595 |
| M 61 |
6x7, 8x9, 10x11, 14x15,
16x17, 18x19 |
685 |
| M 80 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22 |
1085 |
| M 100 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 24x26, 27x32 |
1935 |
| M 120 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22,
21x23, 24x27, 25x28, 30x32 |
2595 |
| M 121 |
6x7, 8x9, 10x11, 12x13, 14x15, 16x17, 18x19, 20x22, 21x23, 24x26,
25x28, 27x32 |
2595 |
|
 |

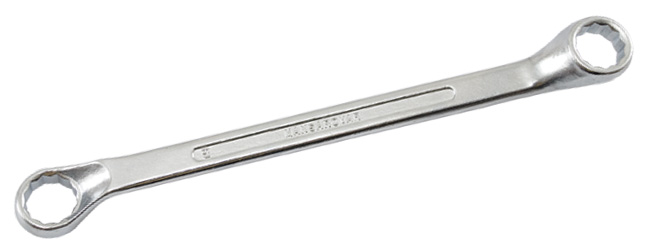

MI - 5110
| Bi-Hexagonal Ring Spanner Shallow Offser* |
Recessed Panel, Carbon Steel
Matt Finish / Head & Side Polished (Chrome Plated)
Duly Hardened & Tempered |
Size
(mm) |
L
(mm) |
gms
(Approx.) |
| 6x7 |
165 |
55 |
| 8x9 |
177 |
70 |
| 10x11 |
190 |
90 |
| 12x13 |
205 |
115 |
| 14x15 |
220 |
155 |
| 16x17 |
238 |
180 |
| 18x19 |
256 |
220 |
| 20x22 |
275 |
320 |
| 21x23 |
295 |
350 |
| 24x27 |
320 |
425 |
| 25x28 |
345 |
500 |
| 30x32 |
370 |
600 |
|
| SETS |
CONTENT |
gms.
(Approx.) |
| M 60 |
6x7, 8x9, 10x11,12x13,
14x15,16x17 |
665 |
| M 80 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22 |
1205 |
| M 120 |
6x7, 8x9, 10x11, 12x13,
14x15, 16x17, 18x19, 20x22,
21x23, 24x27, 25x28, 30x32 |
3080 |
*Note - Avilable only in "MANSAROVAR" brand |
|
|
